产品规格书/Specification
|
产品/product: |
包封浆料/ package paste |
|
料号/part number: |
|
适用范围/Application:
该款浆料适合于电路、电阻片外封标识,外层包封，可用于玻璃、陶瓷、不锈钢、铝合金等基材
The paste is suitable for marking thick film circuit and outside package, glass, ceramic, metal, etc.
使用条件/Operating conditions：
|
基材 Substrate |
厚膜电路、玻璃、陶瓷、金属等 thick film circuit, glass, ceramic, metal, etc. |
|
使用方法 Method of use |
印刷，200-250目 Printing, 200-250mesh |
|
流平 Levelling |
5-10min minutes at room temperature 室温下流平5-10分钟（时间根据流平的实际情况决定）。 |
|
固化 Curing conditions |
通风烘箱烘烤150~200℃，20-30分钟 (固化温度可以在150 150~ ( It could be cured at a temperature between 150~ |
|
稀释剂 Thinner |
ST-1001 |
性能/Characteristics：
1. 浆料性能/Paste Characteristics：
|
性能Characteristic |
标准Standard |
测试方法及条件 Test method and conditions |
|
|
1 |
细度 Fineness |
≤8μm |
FOG test |
|
2 |
粘度Viscosity |
80~150Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25± Brookfield HBT（博利飞）粘度计， 转子SC4-14/6R), 10rpm, 25± |
|
3 |
Appearance 外观 |

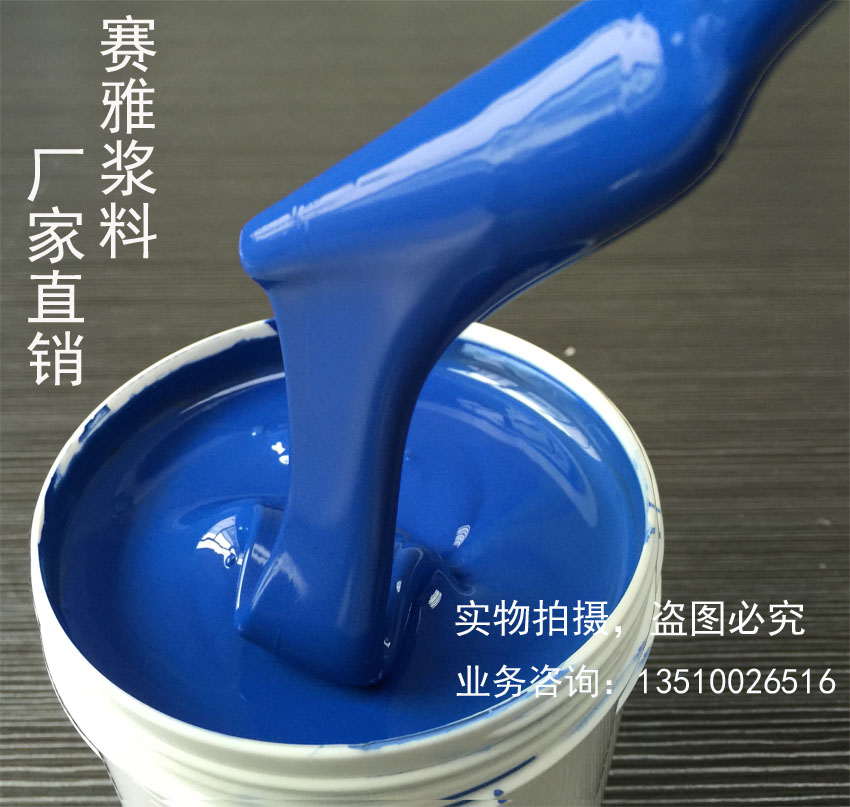

白色，黑色，蓝色，绿色 white, black，blue, green |
|
2. 烧结后特性/Characteristics after curing：
在1烧结条件下，Check fired film produced under the conditions specified in 1）,
|
特性 Characteristics |
Standard 标准 |
测试方法和条件 Test method and conditions |
|
|
4 |
Acid resistance 耐酸性 |
Fine 良好 |
Marinate in 5% H2S04, 30mins, no difference with standard sample 5%硫酸，30分钟无变化 |
|
5 |
Insulation resistance 绝缘系数 |
---- |
RCJ-30 |
|
6 |
Breakdown voltage 击穿电压 |
---- |
CS |
保存条件，有效期/Storage condition and Term of validity
产品应在5-15℃的环境温度下密封储存，有效期为产品发货之日起1年。
The product shall be guaranteed for 1 year after shipping date, keep tightly under at 5
包装方式/Packaging method：
标准包装，
Standard package
