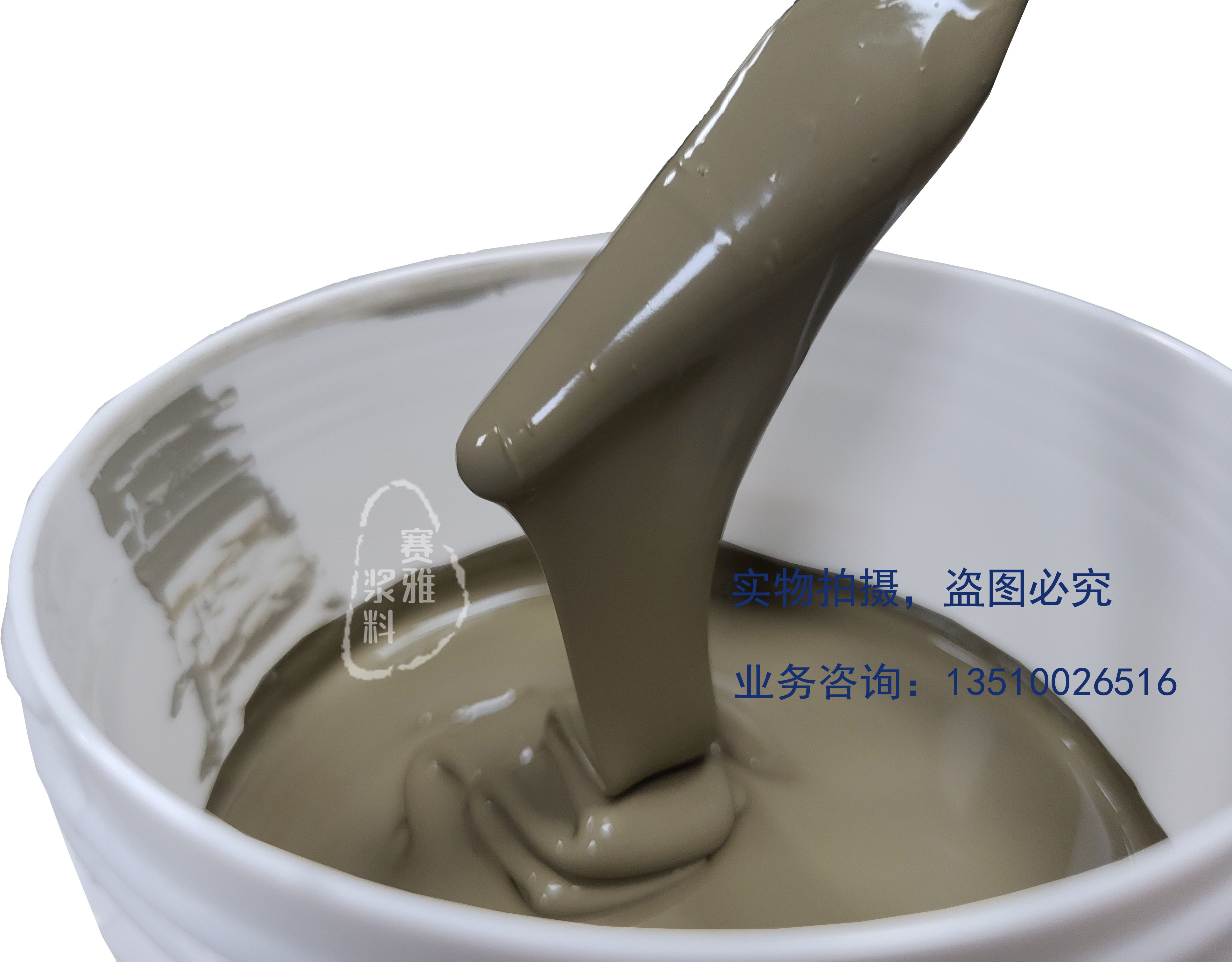

银钯浆料
银钯浆料

料号:02H-3650

规格书

产品规格书/Specification



产品/product:

银钯浆料/ Ag/Pd paste

料号/Part number:

02H-3650

适用范围/Application:

此产品适用于高温厚膜电路、压电陶瓷共烧内电极使用

Suitable for High-Temp thick film circuit、Piezo ceramic product electrode.

使用条件/Operating conditions

基材

Substrate

压电陶瓷

Piezo ceramic

印刷

Printing

200-300目丝网印刷

200-300 mesh stainless screen

流平

Levelling

5-15min minutes at room temperature

室温下流平5-15分钟(时间根据流平的实际情况决定)。

干燥

Drying

单层印刷(压电陶瓷)
Single layer printing (Piezo ceramic)
通风烘箱烘烤100-150℃,10-15分钟
100-15010-15 min
隧道炉空气气氛下烧结,峰值 1000(推荐值),10 分钟。
Atmospheric firing in belt furnace with peak time of 10 mins at 1000

烧结

Firing Condition

多层印刷(压电陶瓷生瓷)
Multilayer printing(Piezo ceramic raw)
200-500℃温度间排胶,最少 60 分钟
Binder removing, 200-500℃,60 mins at least
隧道炉空气气氛下烧结,峰值 1000(推荐值),2-10 小时。
(可根据实际需要调高烧结温度,但一般不超过 1250℃烧结)
Atmospheric firing in belt furnace with peak time 2-10 hours at 1000
According to actual needs, can raise the temperature, but generally does not exceed 1250

Thinner

ST-1000

性能/Characteristics

1. 浆料性能/Paste Characteristics

性能Characteristic

标准Standard

测试方法及条件

Test method and conditions

1

Fineness

5μm

FOG test

2



Viscosity



130-280Pa.s

Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1
Brookfield HBT(博利飞)粘度计, 转子 SC4-14/6R), 10rpm, 25±1℃
粘度可根据用户实际需要调节。



2. 烧结后特性/Characteristics after firing

1烧结条件下,膜厚8-12mm Check fired film produced under the conditions specified in 1, (Film thickness is 8-12mm.)

特性

Characteristics

Standard

标准

测试方法和条件

Test method and conditions

3

Resistivity

方阻



≤30mΩ/□

Test pattern 0.6mm×60mm

测试图形0.6mm×60mm



4

Adhesion strength

附着力







Peel Test: 0.5mmφ Tin plated Cu wire soldered on  2mm×2mm Pad.

0.5mmφ锡浸铜线,焊接面积2mm×2mm

Solder: 96.5Sn/0.5Cu Mildly activated flux used.

焊料:96.5Sn/0.5Cu



Initial

初始附着力

46.2N



保存条件,有效期/Storage condition and Term of validity

产品应在5-25℃的环境温度下密封储存,有效期为产品发货之日起1年。

The product shall be guaranteed for 1 year after shipping date, keep tightly under at 5-25

包装方式/Packaging method

标准包装,1000g/, 样品可提供200克小罐包装

Standard package 1000g/canif you need sample to test, available 200g with small package.
