产品规格书/Specification
|
产品/product: |

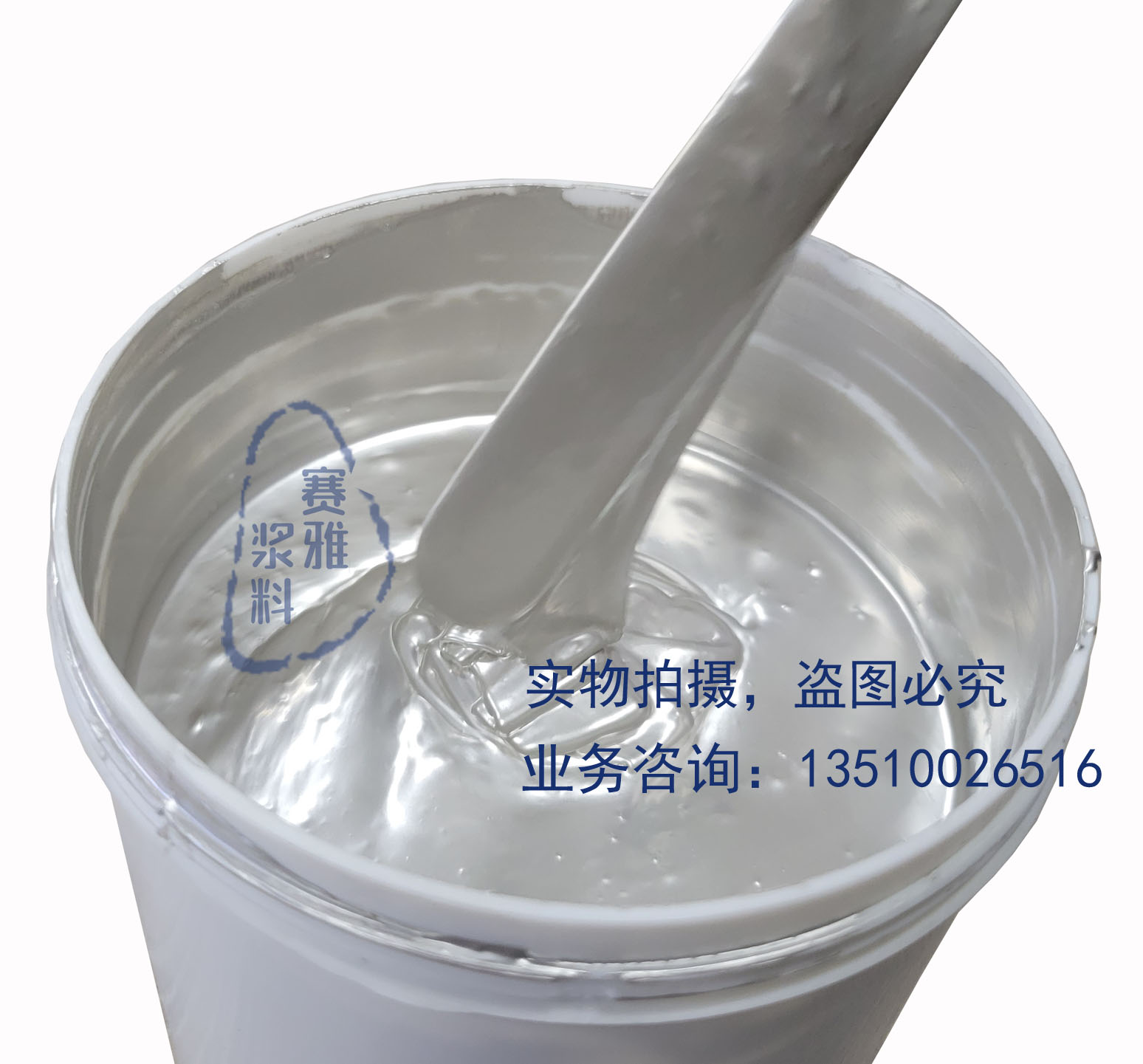

低温银浆/ Silver paste |
|
料号/Part number: |
01L-3611D |
※ 80~120℃加热固化银浆
※ 适用于柔性基材，陶瓷，玻璃，金属等基材电极
※ 点胶，印刷均可
※ 银含量高，电阻低
适用范围/Application:
单组分导体浆料系列，可广泛应用于薄膜开关、柔性印刷电路、笔记本键盘电路、手机键盘屏蔽 线路、多层线路印刷、射频干扰屏蔽、RFID、玩具、学习机电路印刷和触点印刷等领域，在氧化铝陶 瓷、微晶玻璃陶瓷、PET、PC 等片材上均可使用，可提供优良的导电性和薄膜粘接性，有着良好的印 刷性、抗氧化性、柔性和极强的附着力，其导电性能不会因为印刷后的加工成型或产品使用时的弯曲 变化发生大的偏移，丝网印刷、喷涂均可。
01L-2200 series, single group slurry , widely used in thin film switch, flexible printed circuit, laptop keyboard circuit, phone shielding keyboard circuit, multilayer printed circuit, RF interference shielding, RFID, toys, learning machine printed circuit and contact printing and other fields, in the alumina ceramic, microcrystalline glass ceramics, pet, PC, and other sheet can be used, can provide excellent electrical conductivity or adhesive film, has a good printing, oxidation resistance, flexible and strong adhesion, the conductive performance is not because of the occurrence of large offset printing process or product using the bending changes, screen printing, spray can.
使用条件/Operating conditions：
|
基材 Substrate |
陶瓷基板、PET、聚酯薄膜等片材 Suitable for Ceramic, Pet, PI etc |
|
使用方法 Method of use |
200-250目丝网印刷 200-250 mesh stainless screen |
|
流平 Levelling |
3-5min minutes at room temperature 室温下流平3-5分钟（时间根据流平的实际情况决定）。 |
|
固化 Curing conditions |
在恒温烘箱80-120℃，10-30分钟 80-120℃ 10-30 min |
|
Thinner |
ST-1000 |
性能/Characteristics：
1. 浆料性能/Paste Characteristics：
|
性能Characteristic |
标准Standard |
测试方法及条件 Test method and conditions |
|
|
1 |
Fineness |
≤5μm |
FOG test |
|
2 |
Viscosity |
80-280Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1℃， Brookfield HBT（博利飞）粘度计， 转子SC4-14/6R), 10rpm, 25±1℃ 粘度可根据用户实际需要调节。 |
|
3 |
固体含量content |
65-70% |
银 silver Glue |
2. 烧结后特性/Characteristics after firing：
在1烧结条件下，Check fired film produced under the conditions specified in 1）
|
特性 Characteristics |
Standard 标准 |
测试方法和条件 Test method and conditions |
|
|
4 |
Resistivity 方阻 |
≤25mΩ/□ |
固态膜厚8-20μm，测试图形100mm*1mm Cured film thickness 10-25μm, test pattern 100mm * 1mm |
|
5 |
Adhesion strength 附着力 |
无脱落 Not fall off
|
3M 600#胶带 90°拉 3M 600#Tape 90°Pull
|
|
硬度 Hardness |
2H |
铅笔硬度 Pencil hardness |
|
保存条件，有效期/Storage condition and Term of validity
产品应在5-15℃的环境温度下密封储存，有效期为产品发货之日起1年。
The product shall be guaranteed for 1 year after shipping date, keep tightly under at 5-15℃
包装方式/Packaging method：
标准包装，1000g/罐, 样品可提供 200 克小罐包装
Standard package 1000g/can，if you need sample to test, available 200g with small package.
